DELUMPER® S4 Crusher
DELUMPER® S4 Crusher
The DELUMPER® S4 is a sanitary lump crusher featuring easy interior access, clean-in-place capability, and a polished finish, purpose-built for food, pharmaceutical, and hygienic processing environments
Further advantages include:
- Integrated DELUMPER® lump breaker eliminates agglomerates during unloading
- Dust-controlled design improves workplace cleanliness and operator safety
- Enhances material flow for improved conveying, mixing, and processing efficiency
- Compact all-in-one system reduces equipment footprint and installation costs
- Customizable with dust collection systems, hoppers, conveyors, and controls
Performance Specification
DELUMPER® Multi Shaft LP Crusher
| Model Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Typ kW | DC1077-S4 | 305 | 305 | 432 | 432 | 1321 | 432 | 3.7 |
|---|---|---|---|---|---|---|---|
| DC1075-S4 | 356 | 356 | 464 | 521 | 1473 | 483 | 7.5 |
Explore Features and Benefits

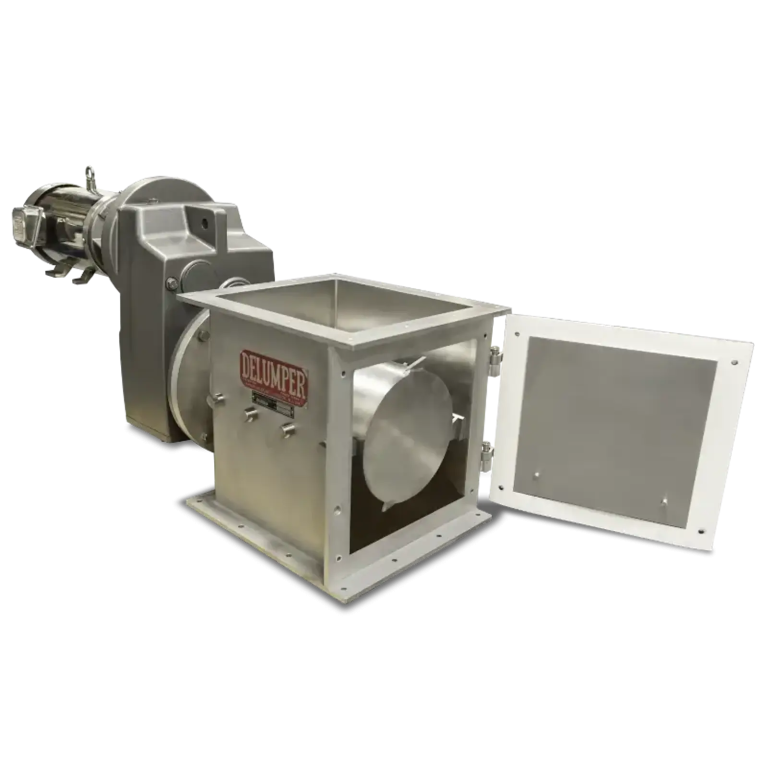

Unmatched Toolless Maintenance via the Hinged Side Door
Unlike standard industrial crushers that require extensive teardown for sanitation, the DELUMPER® S4 features a convenient, hinged side access door.
Ease of Access Controls
Available control systems include a PLC based automatic reversing controller which features heavy IEC starters, disconnect, a choice of NEMA enclosures, as wells as optional variable frequency controls.
High-Torque, Low-Fine Particle Reduction
The S4’s unique mechanism uses precision-machined teeth mounted on a smooth cylindrical drum that pass through dedicated sizing combs. Instead of grinding or pulverizing material into unwanted dust and excess fines, it cleanly and precisely reduces product to a uniform, free-flowing consistency.
Videos
See the Franklin Miller DELUMPER® L Series in Action
Find out how to improve your system with Franklin Miller Delumper Crushers.
Our expert team is standing by for any questions you have about how best to configure your pump system.
