TASKMASTER® TM4000
TASKMASTER® TM4000

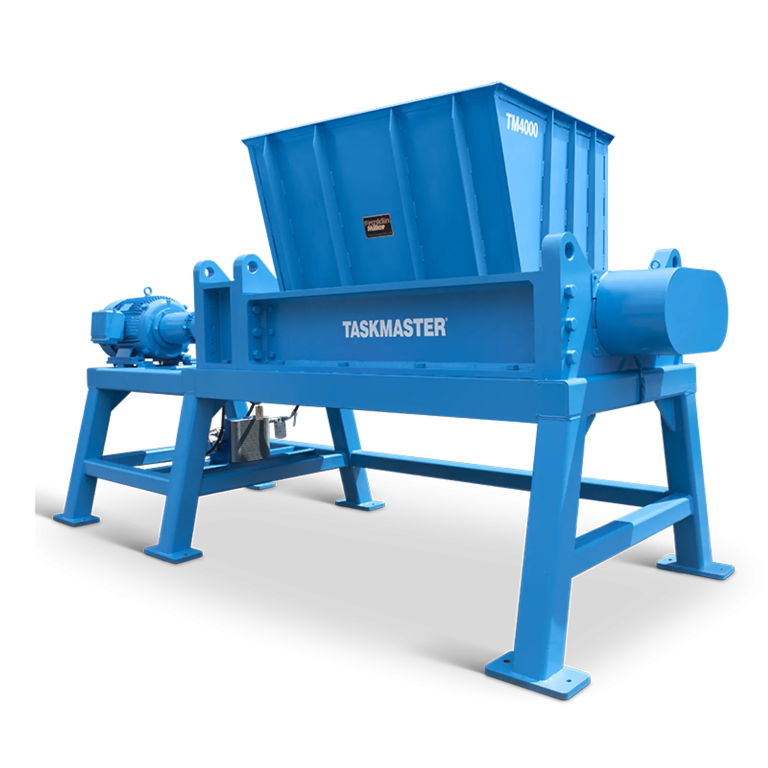

The TASKMASTER® TM4000 is Franklin Miller’s largest heavy-duty industrial shredder, engineered for maximum durability and versatility across the most demanding high-volume size reduction applications.
Further advantages include:
- Heavy Construction Design: With 188mm heat-treated alloy steel hexagonal shafting, 51mm cam cutters, heavy steel plate and channel body construction, the TM4000 is built for robust and long-lasting performance.
- Versatile Reduction Capabilities: This shredder can reduce a wide variety of items including pallets, steel drums, wood, documents, electronic components, hazardous waste, mattresses, solid propellants, plastics, and various tire sizes.
- Adjustable Throat Opening: The TM4000 offers a throat opening that ranges from 762 mm x 1371 mm up to 762 mm x 1828 mm, providing flexibility in handling different materials.
Low Speed, High Torque Design: Utilizing a planetary gear drive, the TM4000’s design enables high torque delivery at low speeds, enabling effective shredding of tough solids and reducing the volume for further processing or disposal. - Quality Components and Superior Engineering: The TM4000 is constructed using quality components and is designed with superior engineering, ensuring the highest level of performance and reliability for heavy-duty industrial applications.

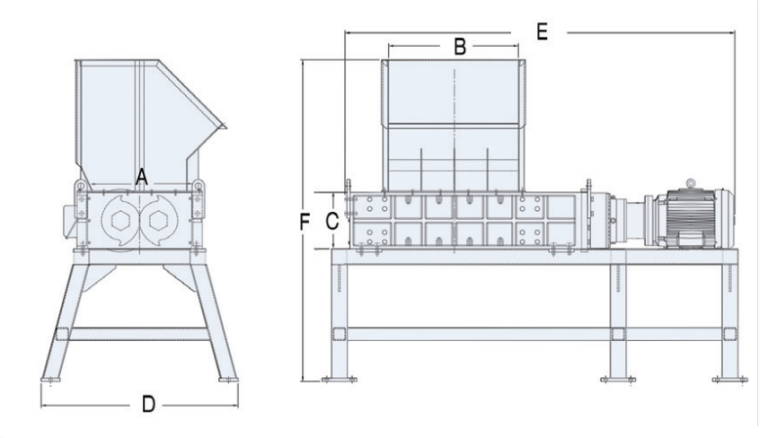

Dimensions
TASKMASTER® TM4000 Shredder
| Model Number | A. Input Width (mm) | B. Input Length (mm) | C. Height (mm) | D. Overall Width (mm) | E. Overall Length (mm) | F. Overall Height (mm) | Hopper Opening (mm) | Shaft Size (mm) | Cutter Diameter (mm) | Cutter Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| TM4060 | 1016 | 1524 | 698.5 | 1397 | 4979 | 2743 | 1676 x 1524 | 201 | 534 | 51mm / 102mm |
| TM4080 | 1016 | 2032 | 698.5 | 1397 | 5486 | 2743 | 1676 x 2021 | 201 | 534 | 51mm / 102mm |
Specifications
TASKMASTER® TM4000 Shredder
| Model Number | Power (kW) | Cleaning Combs | Weight (Maching only) | Drive | Shaft Connection | Shaft Seals |
|---|---|---|---|---|---|---|
| TM4060 | 75 - 110 | Yes | 9,752kg | Planetary Gear | Spline | Labyrinth |
| TM4080 | 75 - 110 | Yes | 11,113 kg | Planetary Gear | Spline | Labyrinth |
Explore Features and Benefits

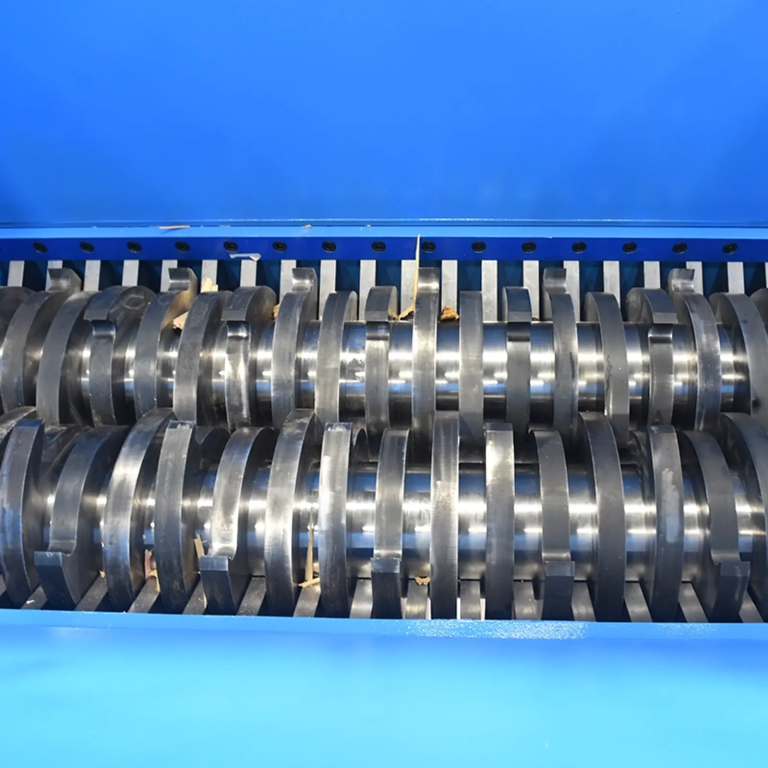

Heavy Industrial Design
With 7.4″ heat-treated alloy steel hexagonal shafting, 2″ cam cutters, heavy steel plate and channel body construction, the TM4000 is built for robust and long-lasting performance.
Quality Components and Superior Engineering
The TM4000 is constructed using quality components and is designed with superior engineering, ensuring the highest level of performance and reliability for heavy-duty industrial applications.

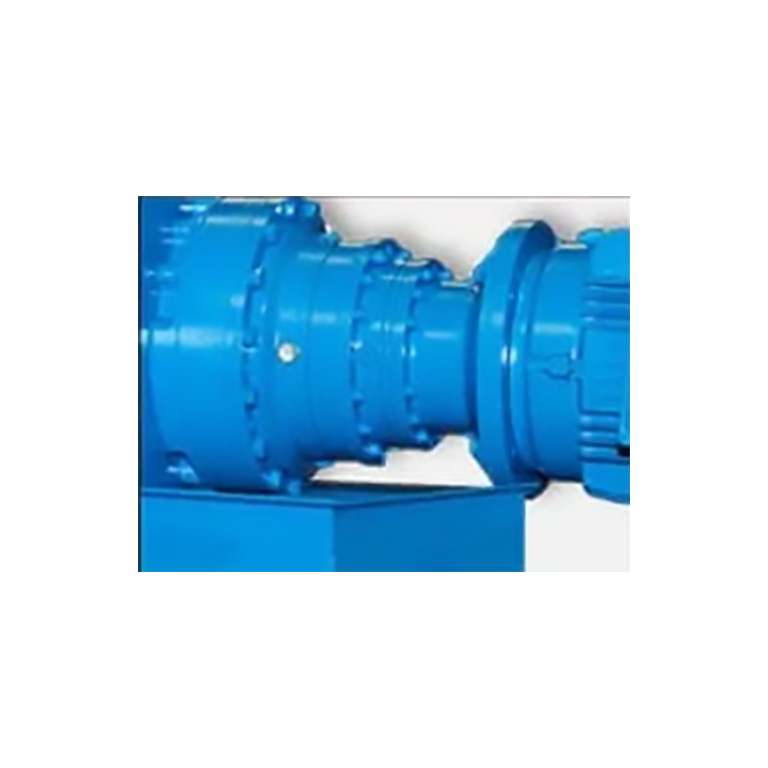

Planetary Reducer
Direct-coupled, highly compact gear reducer provides low-speed, high-torque power. These reducers work with a choice of electric or hydraulic drives.
